Product Details:
Payment & Shipping Terms:
|

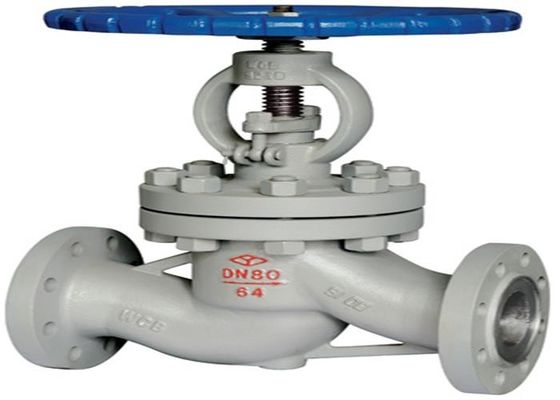

| Product Name: | Flanged Globe Valve | Power: | Manual |
|---|---|---|---|
| Pressure: | Medium Pressure, High Pressure | Body Material: | Carbon Steel |
| Size: | DN 15-300 | Color: | Customer's Request, Silvery White |
| Connection Type: | Flange | Temperature Of Media: | Medium Temperature, High Temperature |
| Standard: | DIN | Medium: | Water Oil Gas, Water |
| High Light: | Carbon Steel Flanged Globe Valve,Silvery White Flanged Globe Valve,DIN 17245 |
||
It is used for the pipes of water, vapour or oul by functions of open and close.
| Size: | DN15-DN300 |
| Norminal pressure(MPA) | 1.6/2.5/4.0/6.3 |
| Suitbk temperature | ≤425°C |
| Seal test | 1.8/2.8/4.51/7.15mpa |
| Shell test | 2.4/3.8/6.15/9.75mpa |
| Suitable medium: | steam,water,oil |
| Design and manufacture | BS 1873, BSEN558-1 |
| Face to face | DIN 3202, EN1092-1 |
| Flange end | DIN 2544, DIN 2545 |
