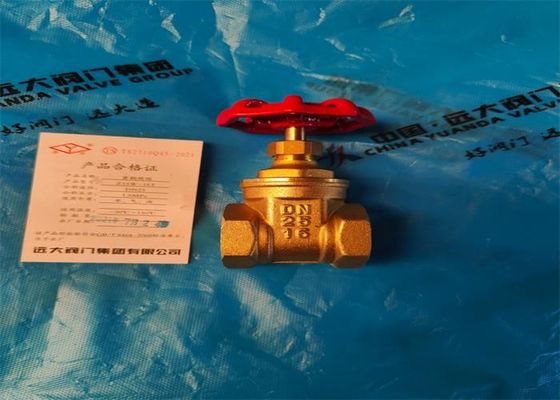

| Product Name: | Brass Water Valve | Body Material: | Brass |
|---|---|---|---|
| Working Temperature: | From -20 To 150 | Medium: | Water,Oil |
| Connection: | Threaded | Color: | Brass Face |
| Working Pressure: | 1.6mpa | Port Size: | DN15-DN100 |
| High Light: | screw thread brass water valve,15mm brass water valve,heating line 15mm gate valve |
||
This valve is suitable for water ≤ 0.4mpa indoor pipeline gas, ≤ 0.6mpa air, non-corrosive liquid non-corrosive medium pipeline for opening and closing
| G | connection(mm) | ||
| L | H | D0 | |
| 1/2 | 43.5 | 71 | Φ53 |
| 3/4 | 45 | 77 | Φ59.5 |
| 1 | 49 | 85.5 | Φ59.5 |
| 1 1/4 | 55.5 | 105.5 | Φ73.5 |
| 1 1/2 | 59 | 113.5 | Φ73.5 |
| 2 | 63 | 130 | Φ78 |
| Part name | material |
| Body,Bonnet | Brass |
| Wheel | Iron |
| Disc | Brass |
| Stem | Brass |
| Type |
Pressure (MPa) |
Testing Pressure | Working temperatu℃ | Suitable medium | |
|
Strength (water) MPa |
Enclose(water) MPa |
||||
| Z15W-16T | 1.6 | 2.4 | 0.6 | -20～150℃ | water,gas |
1. This valve is internal thread connection, GB/T8464 standard dark rod wedge gate valve.
2. This valve is composed of valve body, valve cover, gate plate, valve stem and handwheel. Rotate the handwheel to rotate the valve stem so that the gate can rise or fall to realize opening or closing
1. This valve is kept in a dry warehouse, and is strictly prohibited to be stored in the open air.
2. Long-term storage, regular maintenance.
3. Before installation, the pressure test should be carried out to meet the requirements before installation.
4. The pipe and valve cavity should be cleaned before installation.
5. The product shall not be subjected to a large external force after installation.
6. The operating conditions must be consistent with the requirements in the performance specifications.
7. Turn the handwheel clockwise to close, and vice versa
