Product Details:
Payment & Shipping Terms:
|

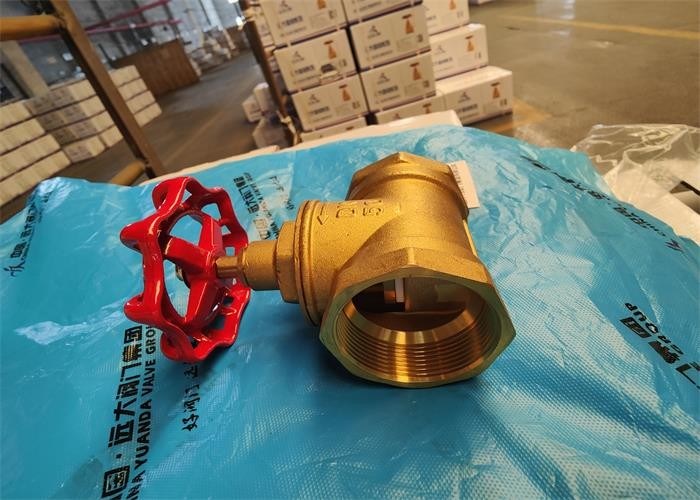

| Product Name: | Brass Water Valve | Body Material: | Brass |
|---|---|---|---|
| Color: | Brass Face | Size: | DN10~DN50 |
| Medium: | Air,Water,Oil | Connection: | Threaded |
| Pressure: | Medium Pressure,1.0Mpa/10bar/150psi | Temperature Of Media: | -15°C To +150°C |
| High Light: | 1.6mpa brass globe valve,dn50 brass globe valve,screw thread dn50 globe valve |
||
This valve is mainly used to cut off or put through the pipeline medium, generally not used for regulating flow
| Type | G | Connection(mm) | ||
| L | H | D0 | ||
|
J11W-10/16T
|
1/2 | 44.5 | 67 | 52 |
| 3/4 | 51 | 79 | 60 | |
| 1 | 64 | 90.5 | 65 | |
| 1 1/4 | 76.5 | 100 | 73.5 | |
| 1 1/2 | 80.5 | 108.5 | 75 | |
| 2 | 97.5 | 124 | 96 | |
| Type |
Pressure MPa |
Test pressure | Suitable Temperature ℃ | Suitable Medium | |||
| Strength(water) | Enclose(water) | ||||||
| Test pressure MPa | Test time(minutes) | Test pressure MPa | Test time(minutes) | ||||
| J11W-16T | 1.6 | 2.4 | 10 | 1.8 | 10 | ≤150 | Water,Non corrosive liquid, ≤0.6 MPa Air |
| J11W-10T | 1.0 | 2.4 | 10 | 1.8 | 10 | ≤150 | Water,Non corrosive liquid, ≤0.6 MPa Air |
| Part Name | J11W-10/16T |
| Material | |
| Body,Bonnet | HPb59-1 |
| Stem | HPb57-3 |
| Disc | HPb59-1 |
1. The J11W-16T is connected with thread, and uses GB/T8464 internal thread stop valve.
2. The valve is composed of a valve body, disc, cover, stem and handwheel, etc., by turning the handwheel to rotate the stem, so as to drive the disc up or down to achieve the purpose of opening and closing.
