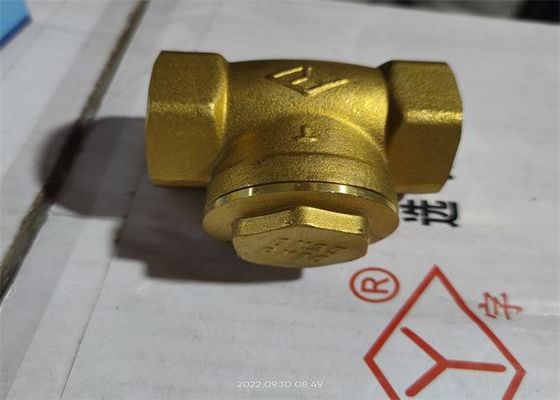

1.6mpa Pressure Brass Water Valve Used On A Water Supply Line

1.6mpa Pressure Brass Water Valve Used On A Water Supply Line
1.6mpa Pressure Brass Water Valve Used On A Water Supply Line 1.6mpa Pressure Brass Water Valve Used On A Water Supply Line

Large Image :  1.6mpa Pressure Brass Water Valve Used On A Water Supply Line

Product Details:
Place of Origin: China
Brand Name: Yuancheng
Model Number: H14W-16T
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiable
Packaging Details: 1200*1100*1100 wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100000 pcs per month
Detailed Product Description
Product Name: Brass Water Valve Body Material: Brass
Color: Brass Face Working Pressure: PN1.0-1.6Mpa
Working Temperature: -10°C To 120°C Medium: Air,Water,Oil
Connection: Threaded Name: Check Valve
High Light:

Threaded Brass Check Valve

,

1.6mpa Brass Check Valve

,

Water Supply Line Brass Water Valve

Check Valve Used On A Water Supply Line, 1.6mpa Pressure Brass Water Valve



Usage:



This valve is only used to prevent all kinds of pipeline or equipment on the medium countercurrent, one-way opening and closing



Connection size



Type G L H
H14T-16 1/2 46 34
3/4 52.5 38
1 59 40
1 1/4 70 48
1 1/2 82 60
2 94 65



Main part material



Main part name  Material
Body / Bonnet Brass
Stem Brass
Disc Brass



The performance specification





Type Pressure MPa Pressure testing

Temperature

Medium
Shell (water)MPa Seal (water)MPa
H14W-16T 1.6 2.4 0.6 ≤100℃ Water/ Oil /Air



Action principle



The valve is the medium flow from the inlet, the valve disc under the action of the flow medium, the valve is opened, the medium flows out from the outlet. When the inlet pressure is lower than the outlet pressure, the disc automatically closes under the combined action of fluid pressure difference and dead weight.



1.6mpa Pressure Brass Water Valve Used On A Water Supply Line 01.6mpa Pressure Brass Water Valve Used On A Water Supply Line 11.6mpa Pressure Brass Water Valve Used On A Water Supply Line 21.6mpa Pressure Brass Water Valve Used On A Water Supply Line 31.6mpa Pressure Brass Water Valve Used On A Water Supply Line 41.6mpa Pressure Brass Water Valve Used On A Water Supply Line 5
