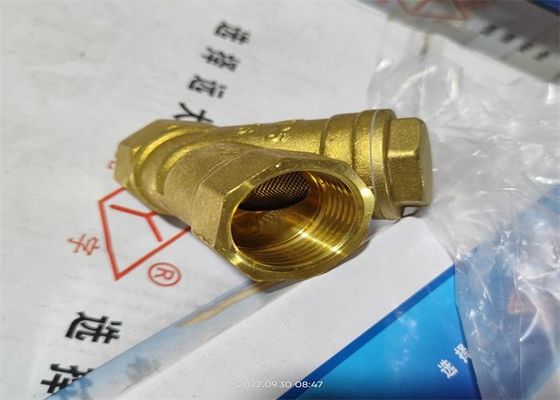

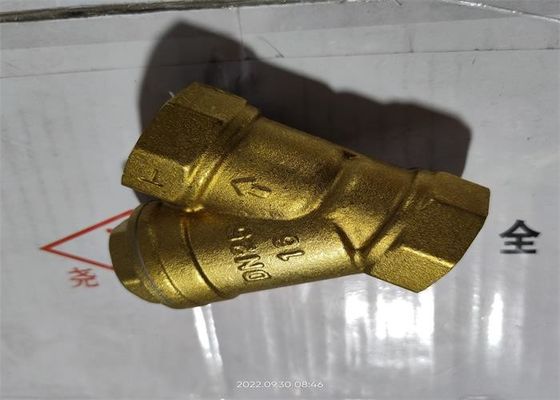

Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure

Certification
China China • Yuanda Valve Group Co., Ltd. certification
China China • Yuanda Valve Group Co., Ltd. certification
I'm Online Chat Now

Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure

Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure
Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure

Large Image :  Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure

Product Details:
Place of Origin: China
Brand Name: Yuancheng
Model Number: WF11B-16T
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: 1200*1100*1100 wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10000 pcs per year
Detailed Product Description
Product Name: Brass Water Valve Body Material: Brass
Color: Brass Face Port Size: DN15-DN50
Pressure: Medium Pressure Connection: Threaded
Name: Y-Filter Strainer Working Temperature: -10°C To 120°C
Highlight:

Thread Connect Water Valve

,

1.6 Mpa Pressure Brass Water Valve

,

DN50 Brass Water Valve

Y-Filter Strainer Thread Connect 1.6 Mpa Pressure Brass Water Valve





Usage:



This product is applicable to non corrosive liquid of water, gas and oil with nominal pressure ≤ 1.6MPa and temperature of - 20 ℃~150 ℃



Performance Specifications:





Type Pressure(MPa) Pressure testingMPa temperatur℃ Medium
Shell test(water)
GL11W-16T 1.6 2.4 -20~150℃  Water, oil air



Main part material





Part name Material
Body Bonnet HPb59-1
filter 201
Gasket PTFE



Precautions for storage, installation and use



1. This product is stored in a dry warehouse, and it is strictly prohibited to store it in the open air.

2. Regular maintenance is required for long-term storage.

3. Clean the pipe and valve cavity before installation.

4. The operating conditions shall be consistent with the requirements in the main performance specifications



Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure 0Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure 1Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure 2Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure 3Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure 4Y-Filter Strainer Thread Connect Brass Water Valve 1.6 Mpa Pressure 5
