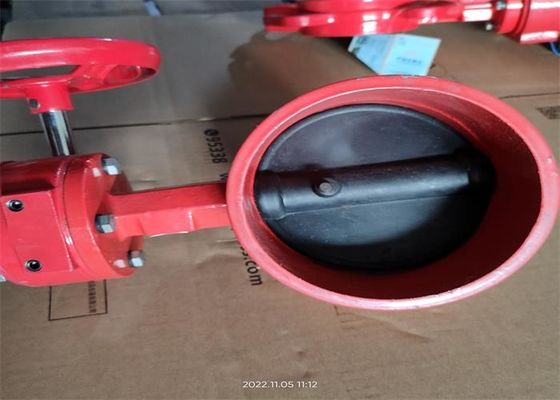

Turbine Groove Butterfly Valve Red Color Fire Protection

Turbine Groove Butterfly Valve Red Color Fire Protection
Turbine Groove Butterfly Valve Red Color Fire Protection Turbine Groove Butterfly Valve Red Color Fire Protection

Large Image :  Turbine Groove Butterfly Valve Red Color Fire Protection

Product Details:
Place of Origin: China
Brand Name: Yuancheng
Model Number: D381X-16Q
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiable
Packaging Details: 1200*1100*1100 wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10000 PCS per year
Detailed Product Description
Product Name: Fire Protection Valves Valve Color: Red Color
Connect: Trench Connection Working Pressure: 1.6 Mpa
Working Tempreature: ≤80℃ Suitable Medium: Water
Valve Name: Butterfly Valve Body Material: Ductile Iron
High Light:

turbine groove butterfly valve

,

turbine red butterfly valve

,

fire protection red butterfly valve

Turbine Groove Butterfly Valve Red Color Fire Protection Valves

Usage:



The valve is widely used in various pipelines of water supply and drainage, building fire protection and other systems, especially in the fire pipeline. The valve can be used on the pipeline or equipment with non corrosive medium to intercept, connect and regulate the flow

When the handle of the valve is rotated by 90 °, the valve shaft also rotates. The valve shaft drives the butterfly plate to rotate to open or close. The dial and the handle meet to adjust the flow



Connection size



Type

Size

DN

Ф1 Ф2 T C
D381X-16Q 65 65.5 75.7 178 103
80 78.5 88.7 202 103
100 100 113.7 222 118
125 126 139.7 233 128
150 151.5 164.7 257 150
200 202.5 218.7 295 188



Material of main parts



Part Name Part material
Body Ductile iron
Disc Ductile iron +NBR
Stem Carbon steel



Valve characteristics



1. Small size, light weight, light operation.
2. The plate has high strength, large flow area, small flow resistance and energy saving.
3. The medium can flow from both sides of the butterfly plate in any direction to achieve the purpose of connecting or cutting.
4. Small operating torque, labor-saving and lightweight.
5. The number of opening and closing experiments is up to ten thousand times, and the life is long.



Matters needing attention



1. The valve is installed on the pipeline for opening and closing, and can also be used for adjusting and throttling.
2. The valve can be installed in any direction.
3. Pipe and valve cavity should be cleaned before installation.
4. The valve shall not be subjected to large external forces after installation.
5. The valve is installed on the pipeline that is closed for a long time, and should be opened and closed regularly.
6. When the local minimum temperature is lower than 4℃, insulation protection should be done;
7. It is strictly prohibited to install and use in pipelines that bear vibration or rapid changes in medium temperature.
8. The working condition shall be consistent with the requirements in the performance specification



Turbine Groove Butterfly Valve Red Color Fire Protection 0Turbine Groove Butterfly Valve Red Color Fire Protection 1Turbine Groove Butterfly Valve Red Color Fire Protection 2Turbine Groove Butterfly Valve Red Color Fire Protection 3
