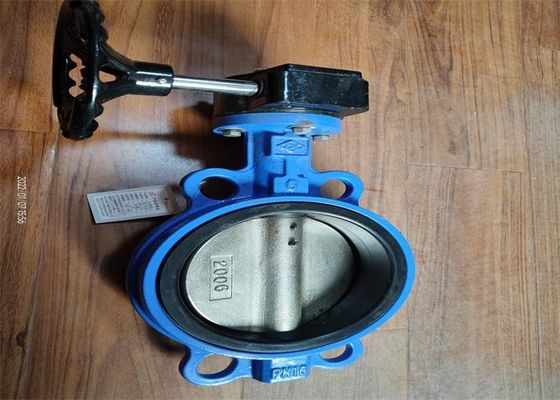

Worm Gear Operated Wafer Butterfly Valve With Pin 1.0/1.6mpa Ductile Iron

Worm Gear Operated Wafer Butterfly Valve With Pin 1.0/1.6mpa Ductile Iron
Worm Gear Operated Wafer Butterfly Valve With Pin 1.0/1.6mpa Ductile Iron

Large Image :  Worm Gear Operated Wafer Butterfly Valve With Pin 1.0/1.6mpa Ductile Iron

Product Details:
Place of Origin: China
Brand Name: Yuancheng
Model Number: D371X
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: wooden box 1200*1100*1100
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100000 pcs per year
Detailed Product Description
Product Name: Wafer Butterfly Valve Connection: Wafer
Disc Material: Cast Iron /Ductile Iron Port Size: DN50 To DN600
Body Material: Ductile Iron/Cast Iron GGG50 Temperature Of Media: 10-80℃
Power: Manual Media: Water
Color: BLUE, Customized Working Pressure: 1.0-1.6Mpa (10-25bar)
High Light:

Worm Gear Wafer Butterfly Valve

,

Pin Wafer Butterfly Valve

,

1.6mpa Worm Gear Operated Butterfly Valve

Worm Gear Driven Whole Shaft 1.0/1.6 Mpa With Pin Wafer Butterfly Valve





Usage:



  This valve is mainly used to cut off the fluid it also can be designed to have the function of adjusting and cutting off the fluid. usery can choosepin or without pin type according to different requirements.



Part materials



Body Gery Iron Ductile Iron
Seat NBR/EPDM
Disc Ductile Iron
Stem Steel Stainless Steel





Dimension





DN ф H B Z-фd L
DN50 (2" ) 125 200 220 4-ф18 43
DN65 (2.5" ) 145 220 220 4-ф18 46
DN80 (3") 160 230 220 4-ф18 46
DN100 (4" ) 180 240 220 4-ф18 52
DN125 (5") 210 250 268 4-ф18 56
DN150 (6") 240 265 268 4-ф23 56
DN200 (8") 295 310 289 4-ф23 60
DN250 (10" ) 355 340 289 4-ф25 68
DN300 (12" ) 410 380 289 4-ф30 78
DN35O (14" ) 470 420 289 4-ф30 78
DN400 (16" ) 515 522 363 4-ф31 88
DN450 (18") 565 536 363 4-ф31 106
DN500 (20" ) 620 604 363 4-ф31 132
DN600 ( 24") 725 695 427 4-ф34 154
DN700 840 811 482 4-M27 165
DN800 952 893 482 4-M30 190
DN900 1050 903 529 4-M30 211
DN1000 1160 983 529 4-M33 224



Worm Gear Operated Wafer Butterfly Valve With Pin 1.0/1.6mpa Ductile Iron 0Worm Gear Operated Wafer Butterfly Valve With Pin 1.0/1.6mpa Ductile Iron 1Worm Gear Operated Wafer Butterfly Valve With Pin 1.0/1.6mpa Ductile Iron 2
