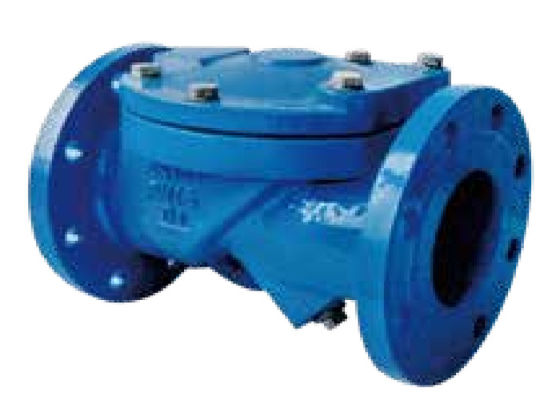

Grey Ductile Iron Flanged Swing Check Valve 1.0/1.6mpa Rubber Wedge

Grey Ductile Iron Flanged Swing Check Valve 1.0/1.6mpa Rubber Wedge
Grey Ductile Iron Flanged Swing Check Valve 1.0/1.6mpa Rubber Wedge Grey Ductile Iron Flanged Swing Check Valve 1.0/1.6mpa Rubber Wedge

Large Image :  Grey Ductile Iron Flanged Swing Check Valve 1.0/1.6mpa Rubber Wedge

Product Details:
Place of Origin: China
Brand Name: Yuancheng
Model Number: H44X-16Q
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: wooden box 1200*1100*1100
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10000 pcs per year
Detailed Product Description
Product Name: Swing Check Valve Color: Customer's Request,blue
Body Material: Grey Iron / Ductile Iron Connection: Flange Ends
Working Temperature: -10 To 80℃ Media: Water
Pressure: 1.6mpa Size: DN50 To DN200
Disc: NBR+Q235 Standard: GB
High Light:

Grey Iron Flanged Swing Check Valve

,

Rubber Wedge Flanged Swing Check Valve

,

1.6mpa Ductile Iron Swing Check Valve

Ductile Iron Pressure 1.0/1.6 Mpa Rubber Wedge Flanged Swing Check Valve





Introduction



The parts design of H44X (SFCV) series rubber flap check valve is mainly composed of three main parts: valve body, bonnet and rubber flap





Usage and characteristics



The rubber flap in the valve is made of steel plate, steel rod and reinforced nylon cloth as the substrate, and the outer layer is covered with rubber. The service life of the valve flap can reach 1 million times. H44X (SFCV) series rubber flap check valve adopts full flow area design, which has the characteristics of small head loss, not easy to accumulate sundries, simple maintenance and so on. H44X (SFCV) series rubber flap check valve is mainly applicable to horizontal water supply and drainage system. It can be installed at the water outlet of the pump to prevent backflow and water hammer damage to the pump. H44X (SFCV) series rubber flap check valve can also be installed on the bypass pipe of the inlet and outlet pipe of the reservoir to prevent the pool water from flowing back to the water supply system. Check valves are generally suitable for clean media, not for media containing solid particles and high viscosity.





Dimension





mm L D D1 D2 b-f Z-фd
50 203 165 125 100 19-3 4-ф19
65 216 185 145 120 19-3 4-ф19
80 241 200 160 132 19-3 8-ф19
100 292 220 180 155 19-3 8-ф19
125 330 250 210 185 19-3 8-ф19
150 356 285 240 210 19-3 8-ф23
200 495 340 295 262 20-3 12-ф23





Feature



Body Ductile Iron
Bonnet Ductile Iron
Disc  NBR+Q235+Nylon fiber mesh sleeve
Gasket NBR
Norminal pressure 1.6 mpa
sheel test (water) 1.76 mpa
seal test (water) 2.4 mpa
temperature -10 to 80 ℃
