Korea Standard 50mm Swing Check Valve Flanged Carbon Steel Material

Certification
China China • Yuanda Valve Group Co., Ltd. certification
China China • Yuanda Valve Group Co., Ltd. certification
I'm Online Chat Now

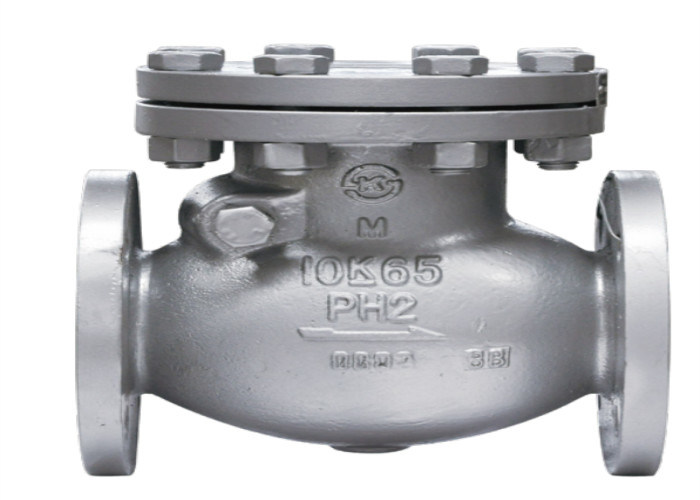

Korea Standard 50mm Swing Check Valve Flanged Carbon Steel Material

Korea Standard 50mm Swing Check Valve Flanged Carbon Steel Material
Korea Standard 50mm Swing Check Valve Flanged Carbon Steel Material Korea Standard 50mm Swing Check Valve Flanged Carbon Steel Material

Large Image :  Korea Standard 50mm Swing Check Valve Flanged Carbon Steel Material

Product Details:
Place of Origin: China
Brand Name: Yuancheng
Model Number: H44H-10K
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: wooden box 1200*1100*1100
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10000 pcs per year
Detailed Product Description
Product Name: Flanged Swing Check Valve Media: Water,steam
Power: Non Color: Customer's Request,
Body Material: Carbon Steel Connection: Flange Ends,RF
Working Temperature: -20- 180°c Type: Check,swing
High Light:

korea standard swing check valve flanged

,

50mm swing check valve flanged

,

carbon steel flanged swing check valve

Korea Standard Flanged End Swing Check Valve, Carbon Steel Material





Usage:



This valve is only used to prevent the reverse flow of medium on various pipelines or equipment and to open and close in one direction.



Adopted standards



-Design and manufacture: KS B 2361 flanged cast steel valve

·Structure length: KS B 2361 flanged cast steel valve

·Connecting end: KS B 2361 flanged cast steel valve

·Inspection and test: KS b2304 general rules for valve inspection



Connection size

Type

Size


L D D1 D2 b-f Z-Фd H
H44H-16C 50 203 155 120 96 16-2 4-Ф19 160
65 216 175 140 116 18-2 4-Ф19 175
80 241 185 150 126 18-2 8-Ф19 190
100 292 210 175 151 18-2 8-Ф19 215
125 330 250 210 182 20-2 8-Ф23 240
150 356 280 240 212 22-2 8-Ф23 255
200 495 330 290 262 22-2 12-Ф23 295
250 622 400 355 324 24-2 12-Ф25 340
300 698 445 400 368 24-3 16-Ф25 390



Structure and action principle



1. This valve is flange connected in accordance with KS B 2361 standard.

2. This valve is composed of valve body, valve cover, valve disc, rocker and rocker shaft and other parts. The valve disc can automatically prevent fluid backflow. The valve disc of this valve is opened under the action of fluid pressure, and the fluid flows from the inlet side to the outlet side. When the inlet pressure is lower than the outlet pressure, the valve disc automatically closes under the action of fluid pressure difference, its own gravity and other factors to prevent medium backflow.



Storage, installation and use instructions



1. The valve shall be placed in a dry warehouse and shall not be stored in the open air.

2. If it is stored for a long time, it should be maintained regularly.

3. The working conditions shall meet the requirements of performance specifications.

4. Pressure test shall be carried out before installation, and installation can be carried out only after it meets the requirements.

5. Clean the inner cavity of pipes and valves before installation.

6. After installation, the product should not be subjected to large external forces.

7. The valve is usually installed on the horizontal pipeline, but it can also be installed on the vertical pipeline or the inclined pipeline. Note that the medium flow direction is consistent with the arrow direction on the valve body.
