Pn16 Dn100 Wafer Type Butterfly Valve With Pin Cast Iron Material Emdp Seat

Certification
China China • Yuanda Valve Group Co., Ltd. certification
China China • Yuanda Valve Group Co., Ltd. certification
I'm Online Chat Now

Pn16 Dn100 Wafer Type Butterfly Valve With Pin Cast Iron Material Emdp Seat

Pn16 Dn100 Wafer Type Butterfly Valve With Pin Cast Iron Material Emdp Seat
Pn16 Dn100 Wafer Type Butterfly Valve With Pin Cast Iron Material Emdp Seat Pn16 Dn100 Wafer Type Butterfly Valve With Pin Cast Iron Material Emdp Seat

Large Image :  Pn16 Dn100 Wafer Type Butterfly Valve With Pin Cast Iron Material Emdp Seat

Product Details:
Place of Origin: China
Brand Name: Yuancheng
Model Number: D71X-16
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: wooden box 1200*1100*1100
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100000 pcs per month
Detailed Product Description
Product Name: Wafer Butterfly Valve Color: BLUE,customized
Connection: Wafer Working Pressure: 1.0-1.6Mpa (10-25bar)
Medium: Water Power: Handle
Body Material: Casting Iron Size: DN50~250
High Light:

pn16 wafer type butterfly valve

,

emdp seat wafer type butterfly valve

,

dn100 wafer valve

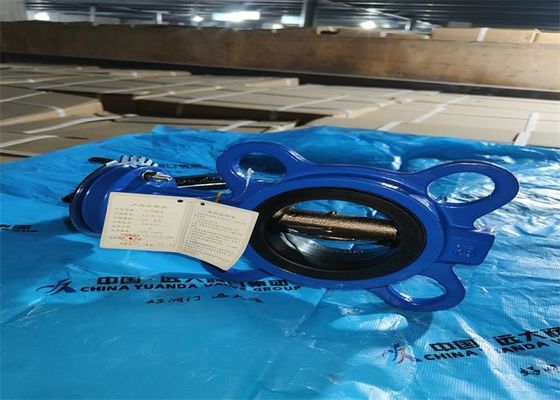

PN16 DN100 With Pin Cast Iron Material,EMDP Seat Wafer Butterfly Valve




Usage:


This valve is widely used in water supply and drainage, building fire and other systems on all kinds of pipelines, especially in the fire pipeline. This valve can be used in the pipeline or equipment of non-corrosive media, as the interception, connection and regulation of flow.


Connection size



Type DN Ф L B R1
D71X-16 50 125 234 45 R11
65 145 261 47.6 R11
80 160 261 49 R11
100 180 260 54 R12
125 210 312 58 R12.5
150 240 312 58.6 R13
200 295 360 63.4 R13.5



Technical parameters



Pressure 1.0/1.6MPA
Size DN50~DN250
Temperature ≤80℃
Medium clear water
Design standard GB/T12238
Face to Face standard GB/T12221
End connection standard JB/T 17241.6
Inspection and testing  GB/T 13927



Action principle


1. The valve is a clip connection, the valve is composed of valve body, disc plate, valve shaft, handle and other parts.
2. The valve turns the handle 90°, the valve shaft also turns, the valve shaft drives the butterfly plate to turn to open or close, the dial and the handle to adjust the flow.


The valve features


1. Structure size conforms to GB/T12221, small size, light weight, easy to operate.
2. The structure adopts half shaft structure, 90 degree operation and quick opening; The plate has high strength, large flow area, small flow resistance and energy saving.
3. The medium can flow from both sides of the flange disc valve in any direction, which can achieve the purpose of connecting or cutting off.
4. The operation torque is small, labor saving and lightweight.
5. The number of opening and closing experiments is more than ten thousand times, with a long life.
5. Complete sealing is achieved, and the gas leakage is zero.
