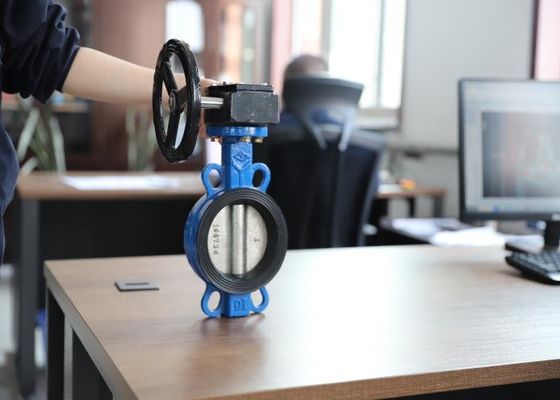

| Product Name: | Wafer Butterfly Valve | Color: | BLUE,customized |
|---|---|---|---|
| Size: | DN50~250 | Connection: | Wafer |
| Medium: | Water | Working Pressure: | 1.0-1.6Mpa (10-25bar) |
| Body Material: | Casting Iron | Power: | Handle |
| High Light: | dn100 wafer butterfly valve,emdp seat wafer butterfly valve,dn100 wafer type butterfly valve |
||
This valve is widely used in water supply and drainage, building fire and other systems on all kinds of pipelines, especially in the fire pipeline. This valve can be used in the pipeline or equipment of non-corrosive media, as the interception, connection and regulation of flow.
| Pressure | 1.0/1.6MPA |
| Size | DN50~DN250 |
| Temperature | ≤80℃ |
| Medium | clear water |
| Design standard | GB/T12238 |
| Face to Face standard | GB/T12221 |
| End connection standard | JB/T 17241.6 |
| Inspection and testing | GB/T 13927 |
| Type | DN | Ф | A | B | Z-Φd | L |
| D371X-10/16Q | 40 | 125 | 74 | 116 | 4-Φ19 | 43 |
| 50 | 125 | 74 | 116 | 4-Φ19 | 43 | |
| 65 | 145 | 82 | 124 | 4-Φ19 | 46 | |
| 80 | 160 | 89 | 132 | 4-Φ19 | 46 | |
| 100 | 180 | 106 | 186 | 4-Φ19 | 52 | |
| 125 | 210 | 119 | 195 | 4-Φ19 | 56 | |
| 150 | 240 | 136 | 212 | 4-Φ23 | 56 | |
| 200 | 295 | 170 | 225 | 4-Φ28 | 60 |
1. Structure size conforms to GB/T12221, small size, light weight, easy to operate.
2. The structure adopts half shaft structure, 90 degree operation and quick opening; The plate has high strength, large flow area, small flow resistance and energy saving.
3. The medium can flow from both sides of the flange disc valve in any direction, which can achieve the purpose of connecting or cutting off.
4. The operation torque is small, labor saving and lightweight.
5. The number of opening and closing experiments is more than ten thousand times, with a long life.
5. Complete sealing is achieved, and the gas leakage is zero.
1. The valve is a clip connection, the valve is composed of valve body, disc plate, valve shaft, handle and other parts.
2. The valve turns the handle 90°, the valve shaft also turns, the valve shaft drives the butterfly plate to turn to open or close, the dial and the handle to adjust the flow.
