Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal

Certification
China China • Yuanda Valve Group Co., Ltd. certification
China China • Yuanda Valve Group Co., Ltd. certification
I'm Online Chat Now

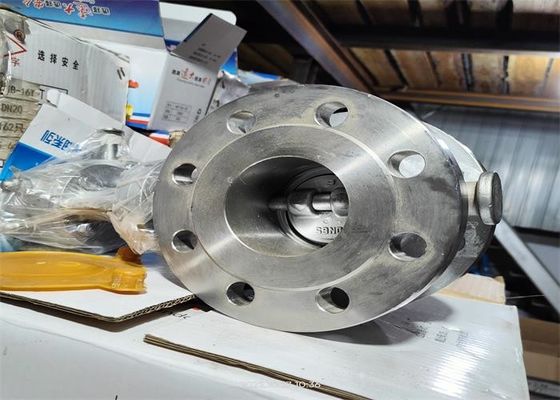

Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal

Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal
Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal

Large Image :  Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal

Product Details:
Place of Origin: China
Brand Name: Yuancheng
Model Number: D343W-16P
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: Negotiable
Packaging Details: 1200*1100*1100 wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 100000 pcs per month
Detailed Product Description
Product Name: Flanged Butterfly Valve Body Material: Stainless Steel
Work Pressure: ≤1.6mpa Suitable Medium: Corrosive Media Such As Water, Steam, Oil And Nitric Acid
Connect: Flange End RF Disc Material: 304 Stainless Steel
Seal Material: Ss304 Metal Seal Color: Body Face
High Light:

Triple Stainless Steel Flanged Butterfly Valve

,

Eccentric Stainless Steel Flanged Butterfly Valve

,

304 Stainless Steel Flanged Butterfly Valve

Metal Seal Triple Eccentric Stainless Steel Flanged Butterfly Valve





Product introduction

   The valve is electric drive or worm drive, flange connection, implementation of JB/T 8527 standard, three eccentric butterfly valve is the butterfly plate rotation axis (valve stem axis) and the butterfly plate sealing surface of a deviation, the valve seat rotation axis and the valve body flow path axis formed an Angle.

   The valve is composed of valve body, butterfly plate, valve stem, butterfly plate seal ring, butterfly plate pressure ring, support, end cover and other parts

   Electric or cochLEAR OPERATION to turn the STEM 90° and drive the disc 90° to open or close.

   Because THE product is three eccentric structure, can produce a CAM effect in the opening and closing process, reduce the valve switching torque, reduce the wear between the seat and the butterfly plate, prolong the service life of the valve



Technical parameters



Flange end GB/T 9113
Face to face GB/T 12221
Nominal Pressure 1.0,1.6 MPa
Suitable temperature -29~425℃
Suitable medium Corrosive liquids such as water, oil, steam and nitric acid.



Connection size





Type

Size

The data table
L D D1 D2 H1 H2 b-f Z-Φd
D343W- 10P 60 108 165 125 99 90 220 20-2 4-Φ18
75 112 185 145 118 100 230 20-2 4-Φ18
85 114 200 160 132 110 237 20-2 8-Φ18
108 127 220 180 156 120 245 22-2 8-Φ18
130 140 250 210 184 135 283 22-2 8-Φ18
158 140 280 240 210 155 312 24-2 8-Φ23
206 152 335 295 265 211.5 350 24-2 8-Φ22
256 165 395 350 320 248.5 400 26-2 12-Φ22
304 178 445 400 370 284 438 26-2 12-Φ22
354 190 505 460 429 315 499 26-2 16-Φ22
404 216 565 515 480 346 527 26-2 16-Φ26
454 222 615 565 530 377 554 28-2 20-Φ26
506 229 670 620 582 417 602 28-2 20-Φ26
606 267 780 725 682 487 655 34-2 20-Φ30



Main part material



Part  Name Material
Body,Disc,Yoke,The packing gland,End cover CF8
Valve shaft,Cylindrical pin F304
Butterfly plate sealing ring 304+XB450
Fasteners in body 35/45
Other connecting bolts, nuts and washers 201



The valve features



1. The valve adopts three eccentric structure, with the tighter sealing function, the sealing performance is reliable.

2. Butterfly plate sealing ring adopts multi-layer plate combination of flexible graphite and stainless steel plate, medium corrosion resistance, erosion, maintenance free, long service life.

3. The sealing surface of the valve body is the body processing technology, resistant to medium corrosion and erosion, maintenance free, long service life.

4. High strength of butterfly plate, large flow area, small flow resistance.

5, the valve shaft is sealed with flexible graphite packing, the higher the medium pressure, the better the sealing. Wear of the packing can be compensated by continuing to compress the packing gland.



Precautions in storage, installation and use



1. This product should be stored in a dry warehouse and is strictly prohibited to be stored in the open air.

2. The medium flow direction should be consistent with the arrow direction on the valve body when the valve is installed.

3. The pressure test should be carried out before installation, and it can be installed after passing the test.

4. The pipe and valve cavity should be cleaned before installation.

5. The product shall not be subject to large external force after installation.

6. The operating conditions shall meet the technical requirements in the performance specifications.

7. Set the valve bracket if necessary.

8. Long-term storage, regular maintenance.

9. Generally, it is not allowed to open the electrical box cover, motor and other sealed parts outdoors on rainy days. When opening the electrical box cover, the power supply must be cut off first.



Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal 0Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal 1Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal 2Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal 3Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal 4Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal 5Triple Eccentric Stainless Steel Flanged Butterfly Valve Metal Seal 6
