DN 400 PN 10 Fire Grey Cast Iron Flanged Butterfly Valve With Handwheels

All Products

Flanged Gate Valve (38)

Flanged Globe Valve (26)

Flanged Swing Check Valve (27)

Floating Ball Valve (29)

Flanged Butterfly Valve (31)

Y Strainer Valve (33)

Wafer Butterfly Valve (27)

Water Conservancy Valve (16)

Lift Check Valve (10)

Fire Protection Valves (25)

Brass Water Valve (25)

Flanged Air Valve (9)

Certification

I'm Online Chat Now

DN 400 PN 10 Fire Grey Cast Iron Flanged Butterfly Valve With Handwheels

Large Image : DN 400 PN 10 Fire Grey Cast Iron Flanged Butterfly Valve With Handwheels

Product Details:

Place of Origin:	China
Brand Name:	Yuancheng
Certification:	ISO9001 CE
Model Number:	D341X-10

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	Contact Us
Packaging Details:	Plastic bag, wooden box，pallet，or according to your requirements
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C
Supply Ability:	3000 pcs per month

Contact Now

Detailed Product Description

DN:	400/450/500/600mm	PN:	1.0/1.6 MPa
Valve Type:	Butterfly	Transmission Type:	Manual
Connector Type:	Flange	Body Material:	Cast Iron
Rubber-lined Material:	NBR	Butterfly Plate Material:	QT450-10
Structure:	Centerline Sealed Type	Adopt Standard:	GB12238
Media:	Water	Media Temp.:	≤80℃
High Light:	grey flanged butterfly valve , flanged butterfly valve with handwheels , dn 400 flanged butterfly valve

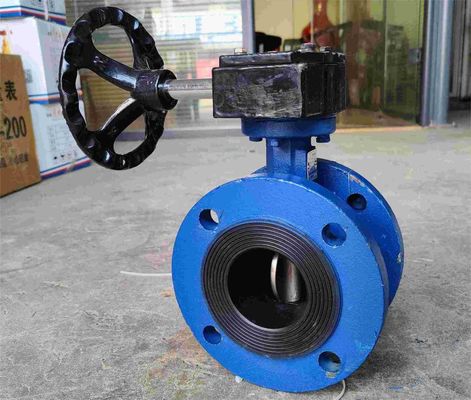

DN 400 PN 10 Fire Grey Cast Iron Flanged Butterfly Valve With Handwheels

Flanged Butterfly Valve Introduction

The flanged butterfly valve is the fastest-growing type of valve in the near future. It has the characteristics of simple structure, small volume, light weight, less material consumption, small installation size, quick opening and closing, 90-degree reciprocating rotation and small driving torque.

It is used to cut off, connect and adjust the medium in the pipeline, and has good fluid control characteristics and closing and sealing performance.

The streamlined design of the butterfly plate reduces the fluid resistance, which is an energy-saving product.

Performance Specification

Modle	PN(MPa)	Test Pressure(MPa)		Applicable Temp.	Applicable Media
Modle	PN(MPa)	Strength(water)	Sealing(water)	Applicable Temp.	Applicable Media
D341X-10	1.0	1.5	1.1	≤80℃	Water
D341X-16Q	1.6	2.4	1.76	≤80℃	Water

Parameter list

Model	DN	Size
Model	mm	D	D1(PN10)	Z-φd	L	b-f
D341X-10	400	580	525	16-φ31	216	32-4
	450	640	585	20-φ31	222	32-4
	500	715	650	20-φ34	229	34-4
	600	840	770	20-φ37	267	36-5

DN 400 PN 10 Fire Grey Cast Iron Flanged Butterfly Valve With Handwheels 0

Characteristics

※ Compared with other valves of the same specification and pressure grade, the flanged butterfly valve has the advantages of short structure length, small size, light weight and simple structure.
※ Quick opening and closing, easy operation, and can be used for quick opening and closing of valves.
※ It has good flow regulating function and closing tightness, long service life, and can be used as regulating valve.
※ It is suitable for large-diameter valves and widely used in large water supply and drainage pipelines.

Storage and Maintenance Cautions

When not in use, it should be placed in a dry and ventilated room, and both ends should be covered with dust covers to ensure that the inner cavity of the valve is clean.
When stored outdoors for safekeeping, it should be supported, not in contact with the ground, and covered with plastic film for protection.
When the valve stored for a long time is reused, check whether the packing fails, and add lubricating oil to each rotating part.
During use, the valve should be checked regularly to ensure its normal use, including tightening the valve packing gland nut regularly to compensate the valve stem wear.
The valve must be used and maintained within the specified service period, including replacement of gasket, packing, sealing ring, ball (as required) and other sealing pairs.
Keeping the working environment of the valve clean can prolong the service life of the valve.

Flanged Butterfly Valve Advantages

►Novel design, reasonable, unique structure, light weight, rapid opening and closing.
►Small operating torque, easy to operate, labor-saving dexterity.
►Can be installed in any position, easy maintenance.
►Seals can be replaced, sealing performance is reliable to achieve two-way seal zero leakage.
►Sealing materials, aging resistance, corrosion resistance, long service life and other characteristics.
►The design and manufacture of the rubber lined flange butterfly valve adopts GB12238 standard.
